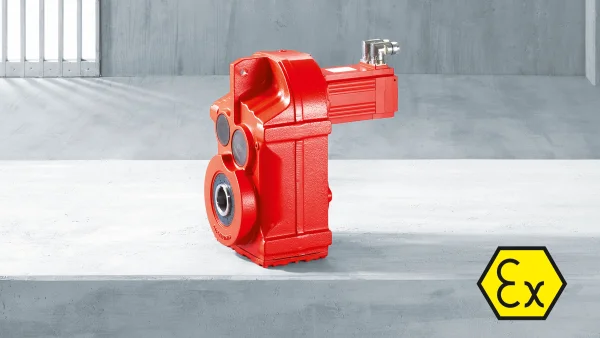

Thanks to their design, explosion-proof F..CMP parallel-shaft helical servo gearmotors are remarkable in terms of saving space. They are also highly efficient, with dynamic servo characteristics.
The explosion-proof servo gearmotor for powerful performance
Optimum explosion protection with the outstanding features of a dynamic servo drive – is this even possible? Yes, it is. Our explosion-proof F..CMP.. parallel-shaft helical servo gearmotor with synchronous CMP motor is the solution you've been looking for.
Due to its exceptional space-saving design and wide range of variants, it is particularly suitable for applications in materials handling technology and process engineering. As an explosion-proof parallel-shaft helical servo gearmotor that meets the requirements of ATEX equipment group II, it guarantees safety, performance, and high torques.
The servo gearmotor has a compact design that makes optimal use of the available space. With our modular CMP motors, you can choose from six available sizes for custom-configured explosion-proof CMP servomotors.
The tried-and-tested standard parallel-shaft helical gear unit from the F series is optimally designed to implement complex requirement profiles with precision. The parallel-shaft helical gear units are built to specifically reduce backlash and feature high torsional rigidity.
Certification according to ATEX includes equipment group II and equipment category 3. The combinations are available in II3GD and II3D design.
Get in touch with us.
- Our experts understand your industry and its requirements.
- Our global network ensures we are there wherever and whenever you need us.
- We have the know-how and tools to provide optimum advice and support.
Your benefits
-
Ensure safety
The explosion-proof gearmotors meet all ATEX requirements for category II3GD. -
Achieve high torques
Depending on the custom-configured design, torques from 87 Nm to 7680 Nm can be achieved.
Features
Explosion-proof parallel-shaft helical gear units
F series
- Gear units comply with Directive 94/9/EC (ATEX), or as of April 20, 2016 of the EU Directive 2014/34/EU (ATEX), equipment group II, equipment category 2, II2GD design
- For use on the European market
- Accepted in China
- Accepted in Russia in conjunction with EAC certificates (successor to GOST-R)
- Certified protection types:
- Protection type “c”: Protected by safe construction (design safety), EN13463-1 and -5
- Protection type “k”: Protected by liquid immersion, EN13463-1 and -8
- Standardised robust covers as shrink disk covers on the gear unit
- All screws are secured against automatic loosening
- Gear unit has a separate nameplate
- High-quality oil seals
- Lubricant can withstand high temperatures
- Slim design for limited installation space
- Also available with reduced backlash
- Available versions:
- Foot-mounted or flange-mounted
- B5 or B14 flange-mounted
- Solid or hollow shaft
- Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or TorqLOC®
Explosion-proof synchronous servomotors
CMP.. series
- Compliant with Directive 94/9/EC (ATEX), or as of April 20, 2016 of the EU Directive 2014/34/EU (ATEX), equipment group II, equipment category 3
- Category II 3GD, for use in zones 2 / 22
- Category II 3D, for use in zone 22
- also available with brake and Hiperface® encoder (with electronic nameplate) in category 3D
Technical data
F..CMP.. gearmotors
| F.. gear units | CMP.. motors | |
|---|---|---|
| Gear unit size | Size | Torque range MaDyn Nm |
| 27 | 40M – 71M | 15 – 157 |
| 37 | 40M – 71M | 14 – 240 |
| 47 | 40M – 80S | 18 – 435 |
| 57 | 50S – 100S | 26 – 645 |
| 67 | 50S – 100L | 30 – 920 |
| 77 | 63S – 100L | 62 – 1530 |
| 87 | 71S – 100L | 137 – 3090 |
| 97 | 80S – 100L | 275 – 4360 |
| 107 | 100S – 100L | 490 – 8860 |
Areas of application
Applications in potentially explosive areas with air/gas or air/dust mixtures according to Directive 94/9/EC (ATEX), or as of April 20, 2016 of the EU Directive 2014/34/EU (ATEX).
| Product | Design | Zone |
|---|---|---|
| Gearmotor (directly mounted gearmotor) | II3GD II3D |
2/22 |
| Stand-alone gear units (gear units with adapter AQ) | II2GD |
1/21 2/22 |
| Stand-alone CMP.. motor | II3GD II3D |
2/22 22 |
Example:
- Food industry
- Packaging machines
- Packers/unpackers
- Palletisers and packaging machines
- Sorting and stacking systems
- Conveyor belts
- Cycle feeds
- Tire, rubber and plastic processing machines
- Travel axes, lifting axes, additional axes
- Positioning drives
